Steering Wheel Horn Switch Replacement

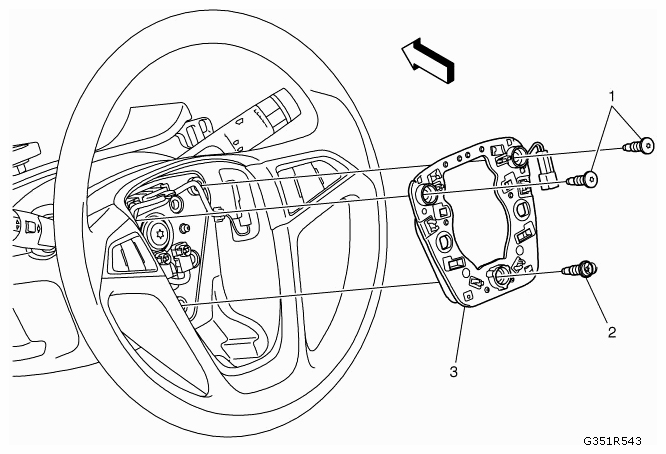

Fig 1: Identifying Steering Wheel Horn Switch And Fastener With Spring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the inflatable restraint steering wheel module. Refer to STEERING WHEEL INFLATABLE RESTRAINT MODULE REPLACEMENT .
1	Steering Wheel Horn Switch Fastener (Qty: 2) Refer to FASTENER CAUTION . Tighten  10.2 Nm (89 lb in)
2	Steering Wheel Horn Switch Fastener With Spring Tighten  10.2 Nm (89 lb in)
3	Steering Wheel Horn Switch Procedure  Disconnect the steering wheel control switches electrical connectors. Disconnect Steering Wheel Horn Switch electrical connector.
