Instrument Cluster Replacement

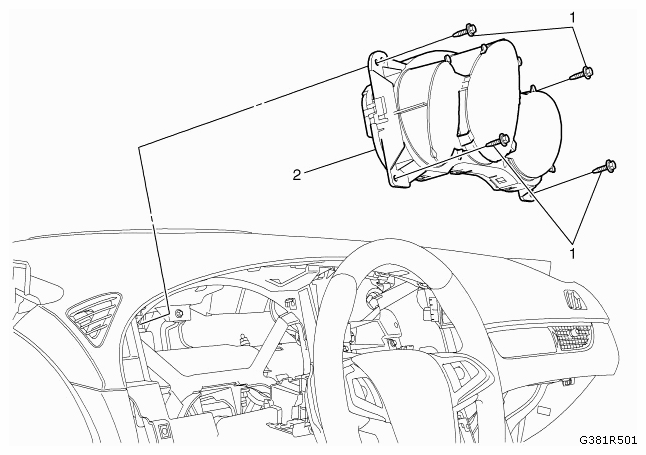

Fig 1: Identifying Instrument Cluster Assembly With Fastener
G09437159Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the Instrument panel upper trim panel. Refer to INSTRUMENT PANEL UPPER TRIM PANEL REPLACEMENT .
1 Instrument Cluster Assembly Fastener (Qty: 4)
See FASTENER CAUTION .
2 Instrument Cluster Assembly
Procedure
  1. Disconnect the electrical connector.
  2. Remove the instrument cluster.
  3. For programming and set up information, refer to CONTROL MODULE REFERENCES .
