Instrument Cluster Head-Up Display Replacement

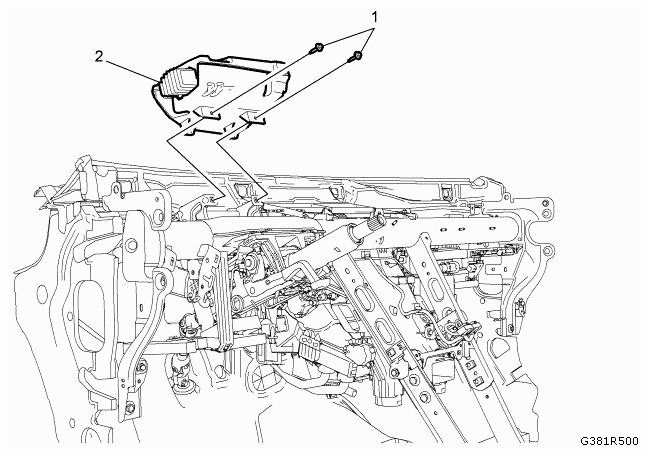

Fig 1: Identifying Instrument Cluster Heads Up Display Assembly With Fasteners
G09437156Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the instrument panel assembly. Refer to INSTRUMENT PANEL ASSEMBLY REPLACEMENT .
1 Instrument Cluster Heads Up Display Fastener (Qty: 2)
See FASTENER CAUTION .
Tighten
2.5 Nm (22 lb in)
2 Instrument Cluster Heads Up Display Assembly
Procedure
  1. Disconnect the electrical connectors.
  2. Refer to CONTROL MODULE REFERENCES for programming and set up information.
