Instrument Cluster Head-Up Display Dimmer Switch Replacement

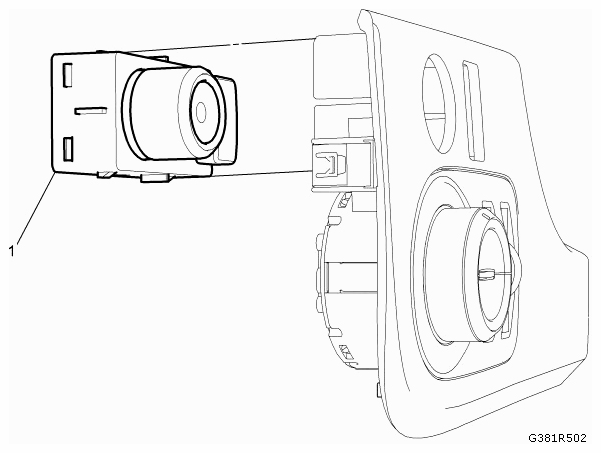

Fig 1: Identifying Instrument Cluster Head-Up Display Dimmer Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the instrument panel headlamp switch molding. Refer to HEADLAMP SWITCH MOLDING REPLACEMENT .
1	Instrument Cluster Head Up Display Dimmer Switch Procedure  Disconnect the electrical connectors. Push in tabs to release the switch from the molding.
