Headlamp Switch Molding Replacement

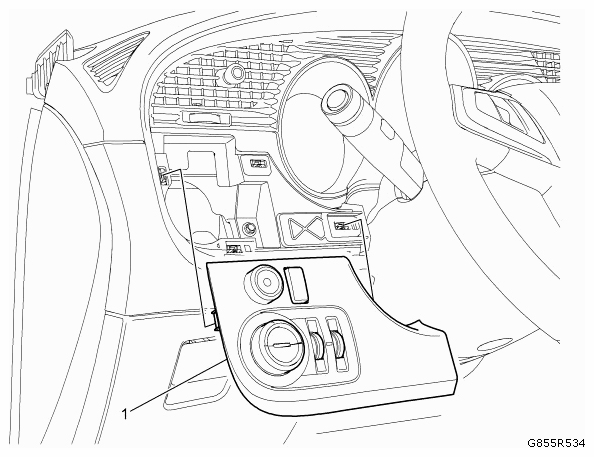

Fig 1: Identifying Headlamp Switch Molding
G09435818Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Headlamp Switch Molding
Procedure
  1. Disconnect the electrical connectors.
  2. If replacing the headlamp switch molding, transfer any parts as needed.
NOTE: Use a flat-bladed plastic trim tool to release the headlamp switch molding from the instrument panel.
