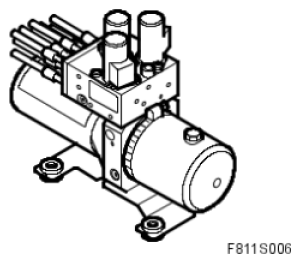

Pump block, hydraulic unit
WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. PUMP BLOCK - TECHNICAL DATA
| Technical data |
|
| Hydraulic oil |
Pentosin CHF-11S |
| Total oil quantity in system |
0.6 litres |
| System pressure |
140 bar +10 bar |
| Oil level |
Level between min and max with cylinders retracted (soft top down). |
