Control module, STC (565)
WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

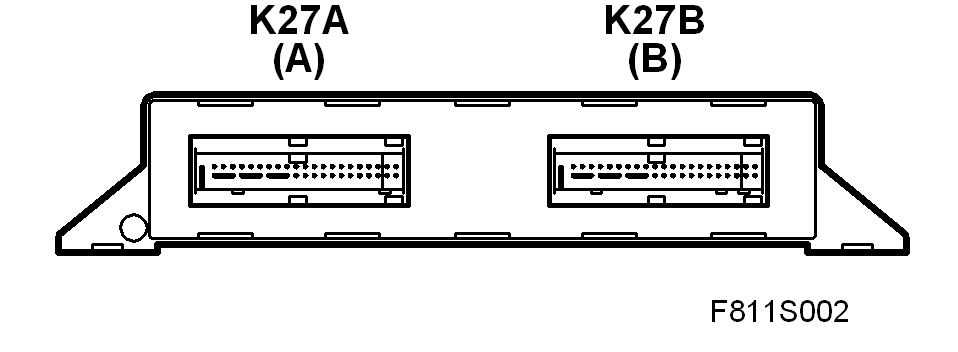

Courtesy of SAAB-SCANIA OF AMERICA, INC. CONNECTOR PIN NUMBER REFERENCE
| Number of pins, connector |
2 x (24 MQS + 3xPQ) |
| Connector K1 |
Car wiring harness |
| Connector K2 |
Roof wiring harness |

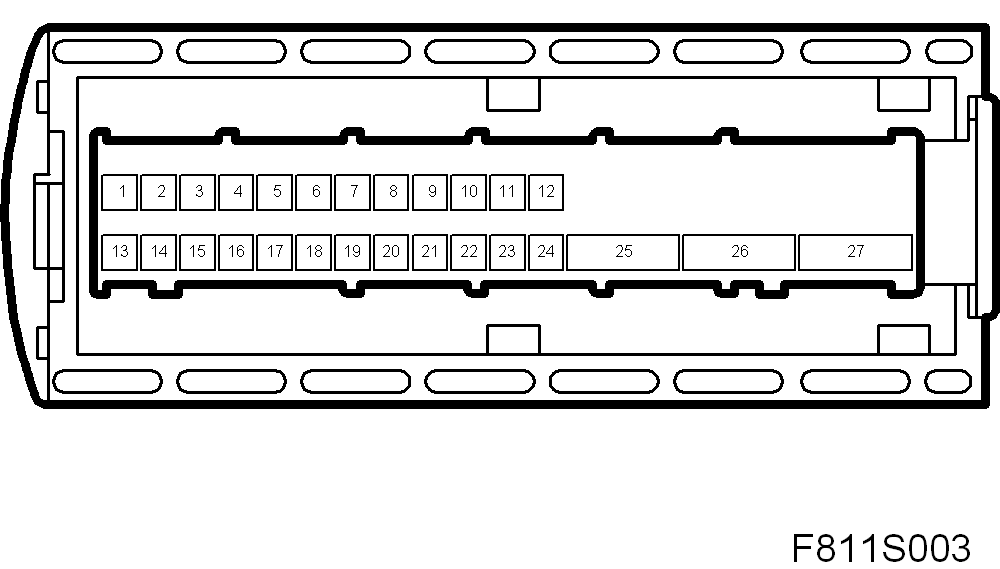

Connector K1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connector K2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
