Third bow: Removing

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Headlining  until the headlining plastic holder can be removed from the third bow.
  2. Detach the outer roof from the third bow.

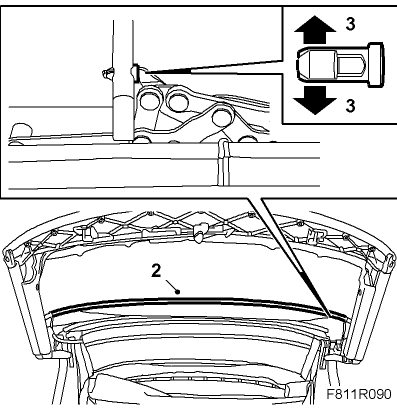

    Fig 1: Illustration For Step 2 And 3
    G05063477Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Lift off the bow mounting locking lugs using two screwdrivers. Knock loose the bow together with the bow mounting.
  4. Remove the third bow.
