Third bow: Fitting

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

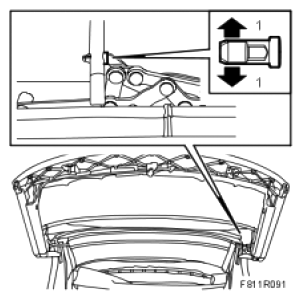

Put the third bow in mounting position. Press so that the bow mounting locking lugs hook on.

Fig 1: Putting Third Bow In Mounting Position
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the soft top support and raise the soft top fully.
Affix new double-sided adhesive tape to the third bow. Fold the fabric tabs of the outer roof around the third bow. Observe the center markings on the parts.

Fig 2: Identifying Fabric Tabs Of Outer Roof Around Third Bow
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Operate the soft top half way down and secure it with the soft top support to prevent it falling down when the hydraulic pressure drops.

Fig 3: Identifying Soft Top Support
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the Headlining .
