Soft top storage: Removing

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the soft top cover. Raise the sixth bow and support it with 82 93 847 SOFT TOP SUPPORT .
    Fig 1: Identifying Soft Top Support (82 93 847)
    G05063321Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unscrew the hinge nuts. Remove the bolts to the soft top storage drive.

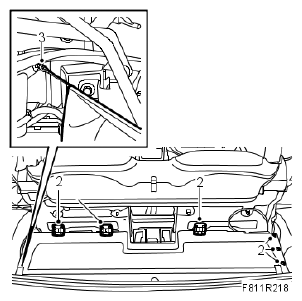

    Fig 2: Illustration For Step 2-3
    G05063322Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unhook the bands at the sides.
  4. Remove the clips for the cable harness and the rear edge of the soft top storage.

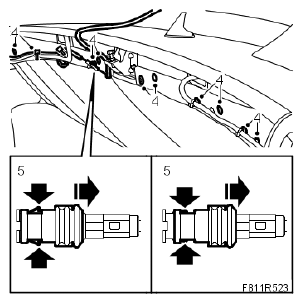

    Fig 3: Illustration For Step 4-5
    G05063323Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Unplug the antenna connector by holding the antenna cable and at the same time pulling the finger grip towards the antenna cable.
  6. Lift out the soft top storage.
