Soft top storage: Fitting

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the soft top storage in mounting position. Fit the soft top storage rear clip and wiring harness.

    Press together the antenna connector.

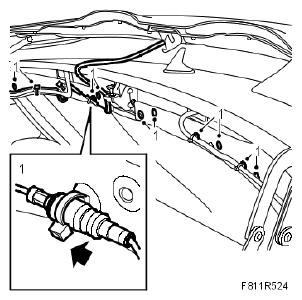

    Fig 1: Identifying Antenna Connector, Clip And Wiring Harness
    G05063324Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Place the front of the soft top storage in mounting position. Fit the bolts to the mechanism and the nuts on the hinges.

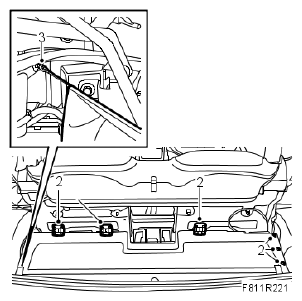

    Fig 2: Illustration For Step 2-3
    G05063325Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the bands on the side. Lift up the soft top storage to check that the side bands are fitted correctly.
  4. Remove the soft top support and close the soft top.
  5. Operate the soft top to check the operation of the soft top storage and soft top.
