To remove

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the soft top cover.
  2. Unplug the connector by holding the antenna cable and at the same time pulling the finger grip towards the antenna cable. Remove the soft top cover.
    Fig 1: Identifying Soft Top Cover
    G05063299Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Make a note of the position of the rear bolts in relation to the scale. Remove the soft top cover bolts.

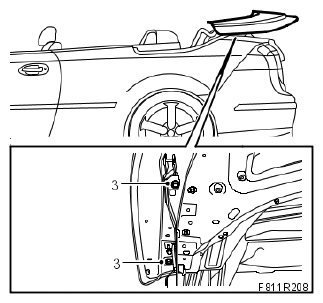

    Fig 2: Identifying Soft Top Cover Bolts
    G05063300Courtesy of SAAB-SCANIA OF AMERICA, INC.
