To fit

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the soft top cover in position for fitting.
  2. Fit the bolts to the soft top cover. Fit the rear bolts in the same position as previously.

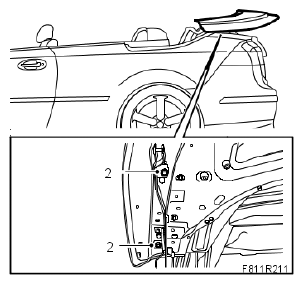

    Fig 1: Identifying Soft Top Cover Bolts
    G05063301Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the antenna cable connector.

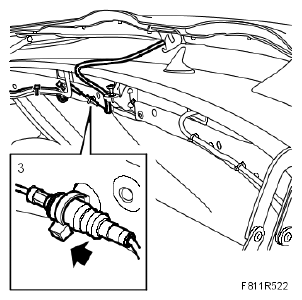

    Fig 2: Locating Antenna Cable Connector
    G05063302Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Check the fit of the soft top cover. Adjust as necessary, see ADJUSTMENT, SOFT TOP COVER
  5. Close the soft top cover.
