To remove

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the soft top cover.
  2. Remove the quick nuts from the soft top cover trim. Pull the trim from the Velcro fasteners.

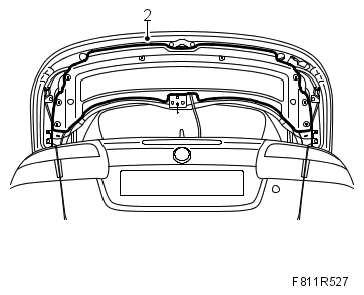

    Fig 1: Identifying Soft Top Cover Trim Quick Nuts
    G05063310Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the soft top cover molding by unscrewing the nuts and lifting away the molding.

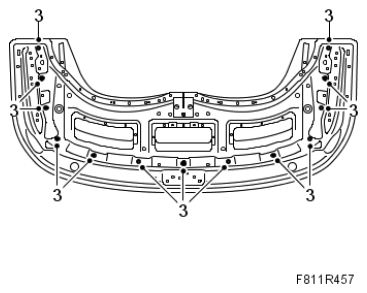

    Fig 2: Identifying Soft Top Cover Molding Nuts
    G05063311Courtesy of SAAB-SCANIA OF AMERICA, INC.
