To fit

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the soft top cover molding.
  2. Fit the nuts.
    Fig 1: Identifying Soft Top Cover Molding Nuts
    G05063312Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Position the soft top cover trim over the studs. Fit the nuts. Press the Velcro in place.

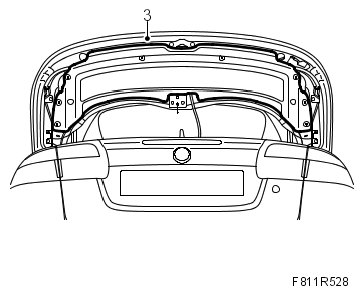

    Fig 2: Identifying Soft Top Cover Studs
    G05063313Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Close the soft top cover.
