To remove

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the soft top cover.
  2. Remove the quick nuts from the soft top cover trim. Pull the trim from the Velcro fasteners.

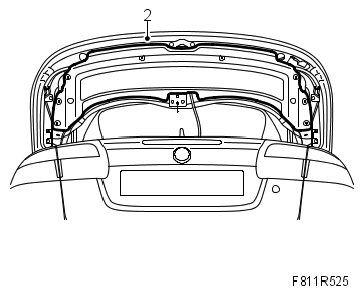

    Fig 1: Identifying Soft Top Cover Trim Quick Nuts
    G05063314Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the nuts from the molding and cover.
    Fig 2: Identifying Soft Top Cover Molding Nuts
    G05063315Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Lift away the molding.
  5. Remove the cover strip by lifting it up at the front to loosen the studs. Then pull the cover strip backwards so that the hooks come loose from the soft top cover.
