To fit

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the cover strip on the soft top cover. Insert the hooks on the soft top cover and move the cover strip forward so that the studs fit in the soft top cover.
  2. Fit the cover strip molding.
  3. Fit the nuts to the molding and cover.
    Fig 1: Identifying Soft Top Cover Molding Nuts
    G05063315Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Position the soft top cover trim over the studs. Fit the nuts. Press the Velcro in place.

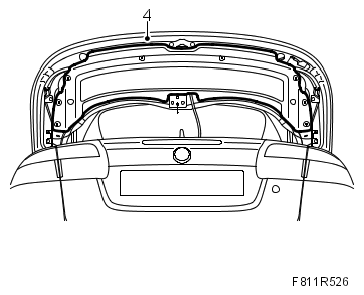

    Fig 2: Identifying Soft Top Cover Trim Over Studs
    G05063317Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Close the soft top cover.
