Sixth bow: Fitting

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

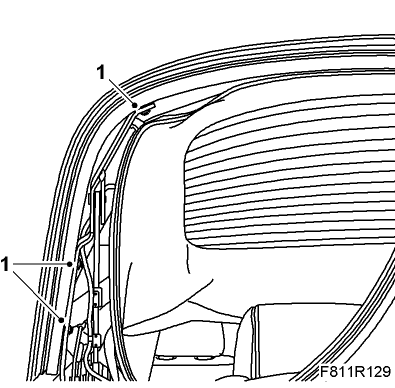

Put the sixth bow in mounting position. Fit the sixth bow bolts.

Fig 1: Illustration For Step 1

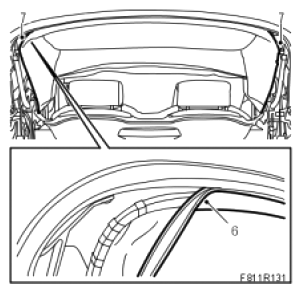

Raise the sixth bow and support it with the soft top support.

Fig 2: Identifying Soft Top Support
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Place the outer roof in the sixth bow groove. Note the center markings on the parts.
Place the outer roof edging into the mounting groove on the sixth bow with the help of an assistant. Start at the middle and continue outward. Press in the edging using the removal tool.

Fig 3: Illustration For Step 4-5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the lock strip using the removal tool into the mounting groove to lock the outer roof edging to the sixth bow.
Fit the headlining edge reinforcing profile at the rear of the sixth bow groove by pressing it in. Start at the middle and observe the center markings on the parts.

Fig 4: Illustration For Step 6-7
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the headlining Velcro fastener.
Remove the soft top support and raise the soft top.
