Reinforcing bow: Removing

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Operate the soft top half way down and secure it with 82 93 847 SOFT TOP SUPPORT to prevent it falling down when the hydraulic pressure drops.

Fig 1: Identifying Soft Top Support
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the seal by pulling it out of the middle part of the U-shaped rail. Unhook the upper part of the seal from the fastener. Let the seal hang.

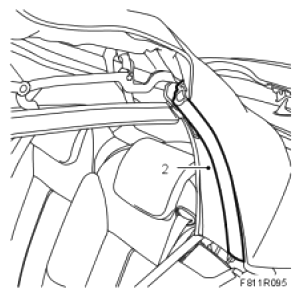

Fig 2: Identifying U-Shaped Rail
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unhook the outer roof attaching profiles from the rear rails.

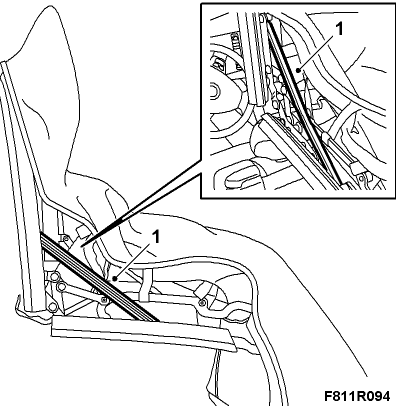

Fig 3: Identifying Outer Roof
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the mounting for the hydraulic lines from the right-hand side of the reinforcing bow.

Fig 4: Identifying Hydraulic Line Holder
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the reinforcing bow bolts on the rear rails. Lift out the reinforcing bow.

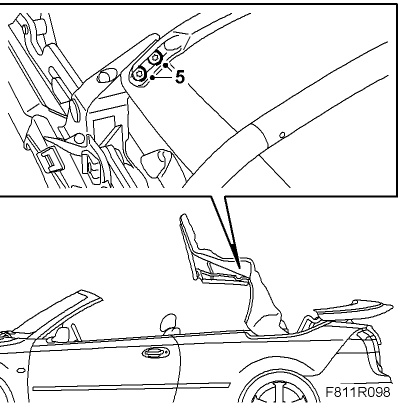

Fig 5: Identifying Reinforcing Bolts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
