Rear window mechanism, CV: Removing

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Open the soft top cover. Raise the sixth bow and support it with 82 93 847 SOFT TOP SUPPORT .

Fig 1: Identifying Soft Top Support (82 93 847)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Detach the strap for the headlining.

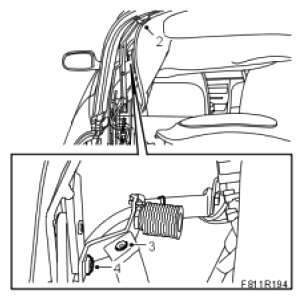

Fig 2: Illustration For Step 2-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the rivet and clip for the fifth bow guide strap.
Remove the lower bolt for the rear window mechanism.
Remove the upper bolt for the rear window mechanism. Remove the rear window mechanism.

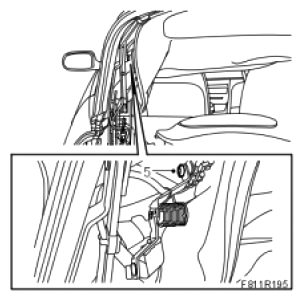

Fig 3: Identifying Upper Bolt
Courtesy of SAAB-SCANIA OF AMERICA, INC.
