Rear window mechanism, CV: Fitting

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Put the rear window mechanism in mounting position.
  2. Fit the upper bolt for the rear window mechanism.

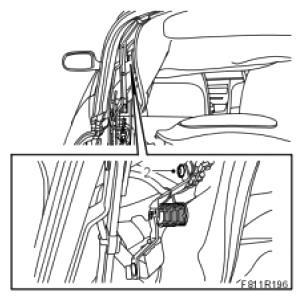

    Fig 1: Identifying Upper Bolt
    G05063471Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the lower bolt for the rear window mechanism.

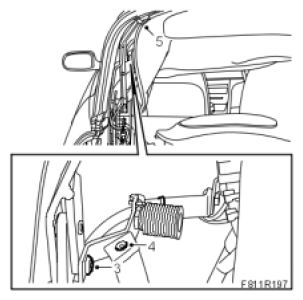

    Fig 2: Illustration For Step 3-5
    G05063472Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the rivet and clips for the fifth bow guide strap.
  5. Fasten the strap to the headlining.
  6. Remove the soft top support and close the soft top.
