Rear rail/sixth bow seal: Removing

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operate the soft top half way down and secure it with 82 93 847 SOFT TOP SUPPORT .
  2. Remove the seal by pulling it out of the middle part of the U-shaped rail. Unhook the upper part of the seal from the fastener. Let the seal hang.

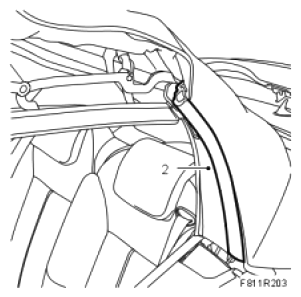

    Fig 1: Identifying U-Shaped Rail
    G05063463Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the soft top support and close the soft top.
  4. Open the soft top cover and raise the sixth bow. Secure with the soft top support.

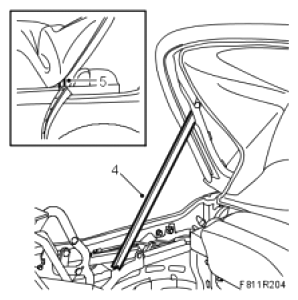

    Fig 2: Illustration For Step 4-5
    G05063464Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Pull out the seal from the mounting groove.
