To remove

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

The soft top storage drive is located on the right-hand side of the car and is fitted with a position sensor.

Open the soft top cover. Raise the sixth bow and support it with 82 93 847 SOFT TOP SUPPORT .

Fig 1: Identifying Soft Top Support (82 93 847)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the soft top storage side bolts.

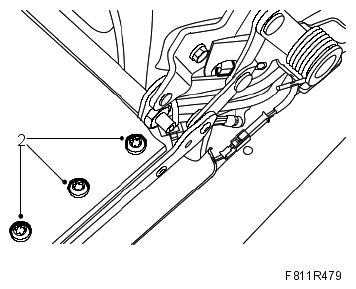

Fig 2: Identifying Soft Top Storage Side Bolts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the bolts for the soft top storage drive mechanism. Pry out the mechanism.

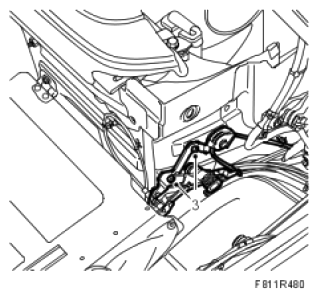

Fig 3: Identifying Soft Top Storage Drive Mechanism Bolts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the position sensor holder.

Fig 4: Illustration For Step 4-5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the position sensor connector (black).
Unhook the position sensor cable from the holder. Remove the sensor from the holder.

Fig 5: Identifying Position Sensor Cable
Courtesy of SAAB-SCANIA OF AMERICA, INC.
