Position sensor, soft top locked, check

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove Soft top cover .
Check that the sensor is correctly fitted in the holder and that the sensor has not moved backward.

Fig 1: Checking Position Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC.

WARNING: Take care when maneuvering the hinge manually. Risk of pinching and subsequent injury.
Guide the hinges to closed and locked position by moving them manually.
Right-hand side:

Fig 2: Guide Hinges To Closed And Locked Position (Right-Hand Side)
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Left-hand side:

Fig 3: Guide Hinges To Closed And Locked Position (Left-Hand Side)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Measure the distance between the position sensor and the hinge using a feeler gauge.
Right-hand side:

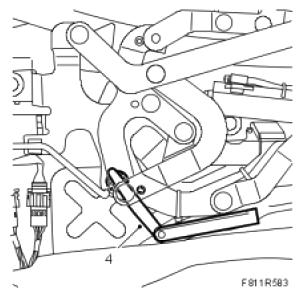

Fig 4: Measuring Distance Between Position Sensor And Hinge (Right-Hand Side)
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Left-hand side:

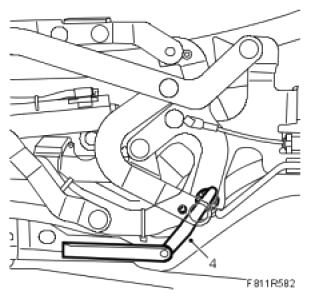

Fig 5: Measuring Distance Between Position Sensor And Hinge (Left-Hand Side)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
If the distance between the position sensor and hinge is more than 1.9 mm, replace the holder. See POSITION SENSOR, SOFT TOP LOCKED (562LH/RH) .
Fit the Soft top cover .
