To fit

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the hydraulic line slightly to one side. Fit the position sensor onto the hydraulic cylinder.
    NOTE: If the position sensor clip has broken, the sensor can be secured with a cable tie.

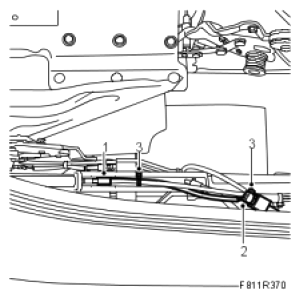

    Fig 1: Illustration For Step 1-3
    G05063601Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the position sensor cable.
    IMPORTANT: Cables to hydraulic lines and position sensors must be refitted as they were earlier or there will be a risk of them being damaged when the soft top and soft top cover are operated.
  3. Fit the cable ties for the hose package and the sensor.
  4. Remove the soft top support.
  5. Test the operation of the soft top.
  6. Connect the diagnostics tool and erase any diagnostic trouble code.
