To remove

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Only the method for changing the position sensor on the right-hand side is described below. The same method applies to changing the sensor on the left-hand side.

Open the soft top cover. Raise the sixth bow and support it with 82 93 847 SOFT TOP SUPPORT .

Fig 1: Identifying Soft Top Support (82 93 847)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the cable tie on the position sensor cable. Note the location of the cable ties.

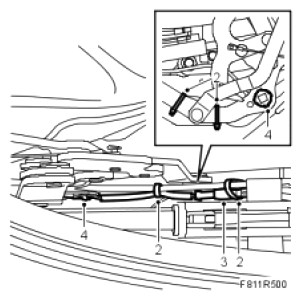

Fig 2: Illustration For Step 2-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unplug the position sensor cable.
Remove the position sensor from the soft top cover hinge using a screwdriver.
Remove the position sensor from the plastic holder.

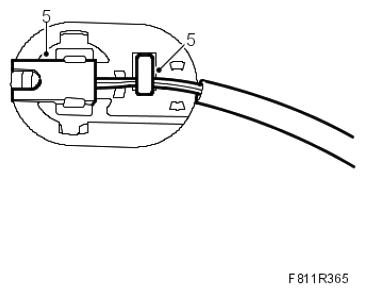

Fig 3: Removing Position Sensor From Plastic Holder
Courtesy of SAAB-SCANIA OF AMERICA, INC.
