To fit

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the position sensor to the plastic holder.
  2. Fit the position sensor to the soft top cover hinge.

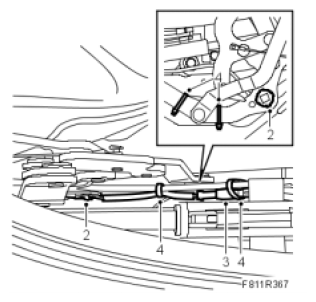

    Fig 1: Illustration For Step 2-4
    G05063592Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Connect the position sensor cable connector.
  4. Fit the cable tie to the position sensor.
    IMPORTANT: Cables to hydraulic lines and position sensors must be refitted as they were earlier or there will be a risk of them being damaged when the soft top and soft top cover are operated.
  5. Remove the soft top support and raise the soft top.
  6. Test the operation of the soft top.
  7. Connect the diagnostics tool and erase any diagnostic trouble code.
