To fit

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Fit the position sensor to the plastic holder where appropriate.
Fit the position sensor plastic holder.

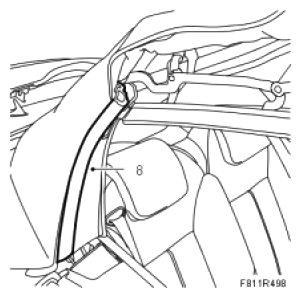

Fig 1: Illustration For Step 2-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Put the position sensor cable in mounting position. Plug in the connector.
IMPORTANT: Cables to hydraulic lines and position sensors must be refitted as they were earlier or there will be a risk of them being damaged when the soft top and soft top cover are operated.
Fold back the outer roof.
Hook the outer roof attaching profiles to the rear rail.

Fig 2: Identifying Outer Roof
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the outer roof edging strip to the sixth bow. Fit the sixth bow locking strip.

Fig 3: Fitting Outer Roof Edging Strip To Sixth Bow
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Operate the soft top to half raised and secure it with the soft top support.

Fig 4: Identifying Soft Top Support
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the rear rail seals. Hook the top part of the seal to the mounting and then press it into the rail.

Fig 5: Identifying Rear Rail Seals
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Test the operation of the soft top.
Connect the diagnostics tool and erase any diagnostic trouble code.
