To remove

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the soft top and leave the soft top cover up.

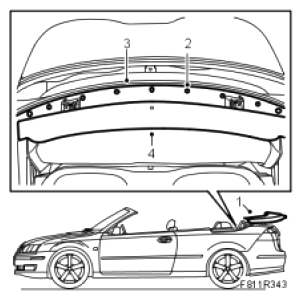

    Fig 1: Illustration For Step 2-4
    G05063580Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the cover plate clip.
  3. Remove the cover plate.
  4. Remove the cover by pulling it backwards.
  5. Unplug the position sensor cable. Remove the sensor cable from the clips. Withdraw the sensor cable from the holder.

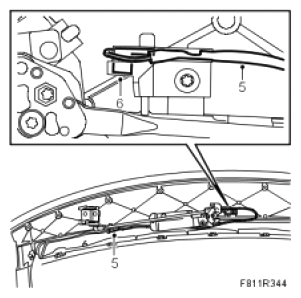

    Fig 2: Illustration For Step 5-6
    G05063581Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the position sensor from the holder.
