To fit

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the position sensor.

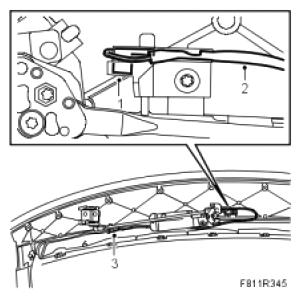

    Fig 1: Illustration For Step 1-3
    G05063582Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the position sensor cable. Fit the cable into the clips.
  3. Press the position sensor cable into the holder.

    Check that the position sensor is correctly adjusted, see ADJUSTMENT OF POSITION SENSOR, FIRST BOW LOCKED (561C) .

  4. Fit the cover.
    Fig 2: Illustration For Step 4-6
    G05566694Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Put the cover plate in mounting position.
  6. Fit the cover plate clip.
  7. Operate the soft top to check the operation of the soft top.
  8. Test the operation of the soft top.
  9. Connect the diagnostics tool and erase any diagnostic trouble code.
