To remove

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Completely retract the soft top and let the soft top cover remain up. Open the side windows fully.
  2. Pull out the rubber plugs from the front section of the weatherstrip.

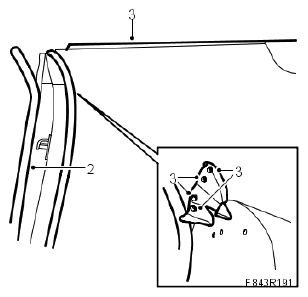

    Fig 1: Illustration For Step 2-3
    G05063318Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Lift the outer weatherstrip upwards and pull off the weatherstrip of the soft top cover. Continue to remove the weatherstrip from the other side by removing the rubber plugs and lift away the seal.
