To fit

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check that the drainage hole by the rear wing is not blocked.

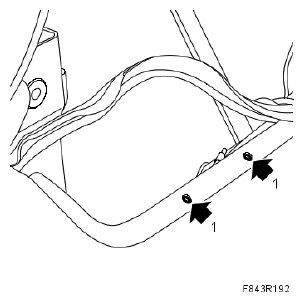

    Fig 1: Locating Drainage Hole
    G05063319Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Locate the weatherstrip in position and push in the rubber plugs.

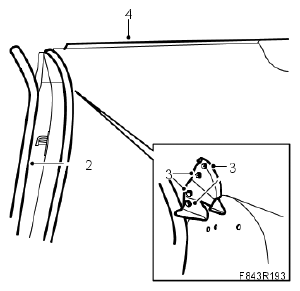

    Fig 2: Illustration For Step 2-4
    G05063320Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Continue to push in place the soft top cover seal onto the metal flange.
  4. Continue to fit the weatherstrip on the other side. Ensure that the rubber catch is correctly located. Fit the plugs to the front section of the strip.
  5. Check the fit of the molding.

    Cars with pinch protection:  Carry out Programming the pinch protection. See CALIBRATION OF PINCH PROTECTION .
