Motor, hydraulic pump, soft top (646): Fitting

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Put the hydraulic unit pump motor in mounting position.

Fig 1: Illustration For Step 1-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the bolts for the pump motor.
Plug in the pump motor connector.
Put the hydraulic unit in mounting position. Fit the hydraulic unit nuts. Fit cable ties where appropriate.

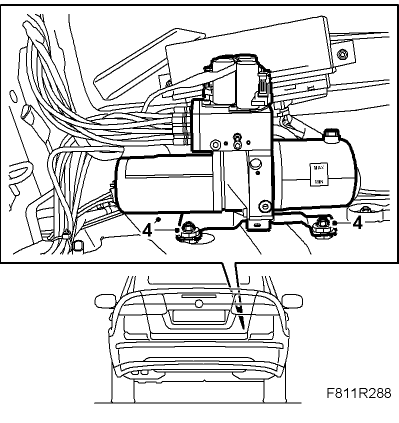

Fig 2: Identifying Hydraulic Unit Mounting Nuts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fill the reservoir to MAX with fluid.
See CHECKING/FILLING OIL .

Use 89 96 860 Power steering fluid.

IMPORTANT: Never use the same fluid as in the Saab 900 Cabriolet-M94
Open and close the soft top for 5 complete cycles to bleed the system and check its function.
Check for any fluid leaks.
Check the oil level and top up as necessary. See CHECKING/FILLING OIL . Use 89 96 860 Power steering fluid.
Connect the diagnostics tool and erase any diagnostic trouble code.
Fit Luggage compartment side trim, CV. See LUGGAGE COMPARTMENT TRIM, CV .
