To remove

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sixth bow and secure with the soft top support.

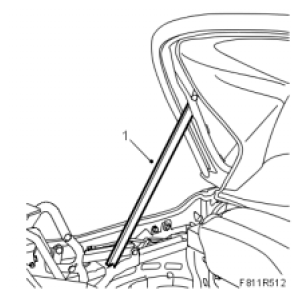

    Fig 1: Identifying Soft Top Support
    G05063338Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the cable locks on the soft top cover hinge. Unhook the cable.
    Fig 2: Identifying Cable
    G05566441Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Loosen the upper clips on the torsion box for the cable. Note the location of the cable.

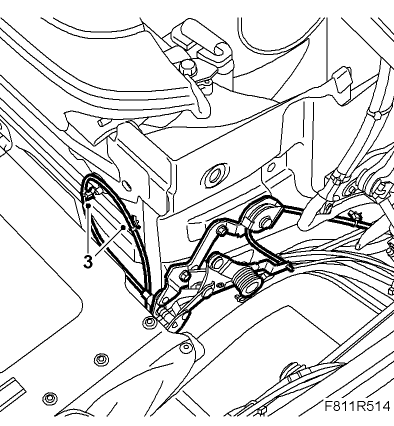

    Fig 3: Identifying Upper Clips
    G05063340Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the soft top support. Close the soft top cover and sixth bow.
  5. Open the bootlid.
    IMPORTANT: Take care when opening the boot lid when the soft top cover is not locked as there is a risk of damaging the paintwork.
  6. Remove Luggage compartment side trim, CV. See LUGGAGE COMPARTMENT TRIM, CV .
  7. Undo the control module nuts. Lay the control module to one side.
  8. Loosen the cable clip.

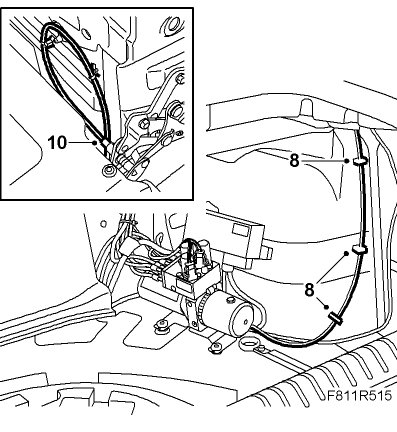

    Fig 4: Illustration For Step 8, 10
    G05063341Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Close the boot lid. Open the sixth bow and the soft top cover. Secure with the soft top support.
  10. Remove the lock clip for the soft top storage lock. Remove the lock complete with cable.
