Hydraulic unit: Removing

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the soft top completely.
  2. Remove the Luggage compartment side trim, CV on the right-hand side. See LUGGAGE COMPARTMENT TRIM, CV .
  3. Remove the hydraulic unit nuts and lift out the hydraulic unit somewhat to access the connections.
    IMPORTANT: Lift up the hydraulic unit carefully so that the hydraulic hoses are not damaged.

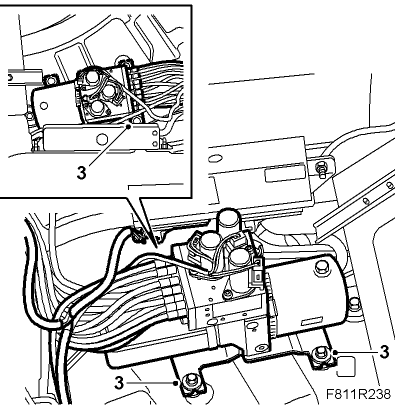

    Fig 1: Identifying Hydraulic Unit Nuts
    G05063347Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the connector to the pump.

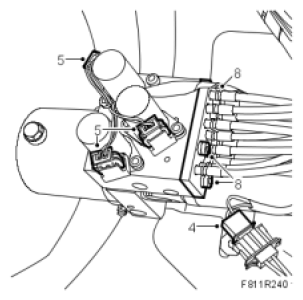

    Fig 2: Illustration For Step 4-5, 8
    G05063348Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Unplug the connectors to the valves.
    IMPORTANT: The hydraulic valve connectors have the following colors: Blue, green and orange. The top of the valve housing is marked for the respective color: "B" for blue, "G" for green and "O" for orange.
  6. Remove the oil filler plug (for pressure equalization). Refit the plug.
  7. Place some paper under the hydraulic unit to catch any hydraulic fluid that may run out.
  8. Remove the hydraulic hose attaching plate.
  9. Lift out the hydraulic unit.
