Hydraulic unit: Fitting

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the hydraulic unit in the luggage compartment.
  2. Place the attaching plate together with the hydraulic lines in mounting position.

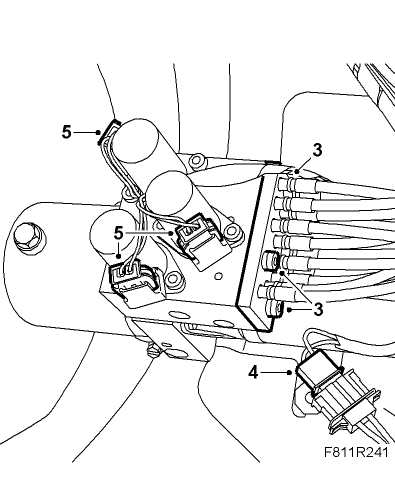

    Fig 1: Illustration For Step 3-5
    G05063349Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit and tighten the bolts for the hydraulic line attaching plate.
  4. Plug in the pump motor connector.
  5. Connect the hydraulic valve connectors.
    IMPORTANT: The hydraulic valve connectors have the following colors: Blue, green and orange. The top of the valve housing is marked for the respective color: "B" for blue, "G" for green and "O" for orange.
  6. Place the hydraulic unit in mounting position. Fit the hydraulic unit nuts.

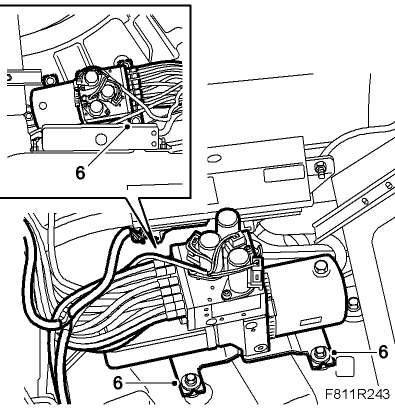

    Fig 2: Identifying Hydraulic Unit Nuts
    G05063350Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fill the reservoir to MAX with fluid.

    See CHECKING/FILLING OIL

    Use 89 96 860 Power steering fluid.

    IMPORTANT: Never use the same fluid as in the Saab 900 Cabriolet-M94
  8. Open and close the soft top for 5 complete cycles to bleed the system and check its function.
  9. Check for any fluid leaks.
  10. Check the oil level and top up as necessary. See CHECKING/FILLING OIL . Use 89 96 860 Power steering fluid.
  11. Connect the diagnostics tool and erase any diagnostic trouble code.
  12. Fit Luggage compartment side trim. See LUGGAGE COMPARTMENT TRIM, CV .
