Hydraulic unit, fluid reservoir: Fitting

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the new O-ring. Lubricate the O-ring with a little hydraulic fluid. Place the hydraulic fluid reservoir in its mounting position.

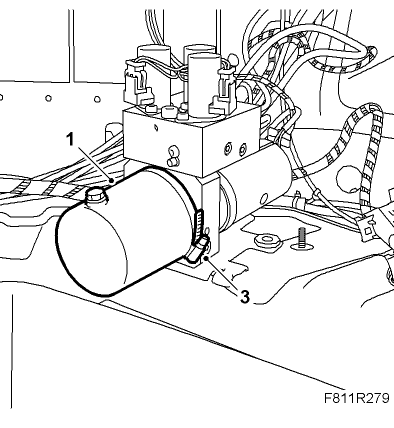

    Fig 1: Illustration For Step 1 And 3
    G05063363Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Turn the hydraulic unit fluid reservoir so that the oil filler plug is up.
  3. Fit the fluid reservoir hose clamp.
  4. Place the hydraulic unit in mounting position. Fit the hydraulic unit nuts.
    Fig 2: Identifying Hydraulic Unit Mounting Nuts
    G05566466Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fill the reservoir to MAX with fluid.

    See CHECKING/FILLING OIL

    Use 89 96 860 Power steering fluid.

    IMPORTANT: Never use the same fluid as in the Saab 900 Cabriolet-M94
  6. Open and close the soft top for 5 complete cycles to bleed the system and check its function.
  7. Check for any fluid leaks.
  8. Check the oil level and top up as necessary. See CHECKING/FILLING OIL . Use 89 96 860 Power steering fluid.
  9. Connect the diagnostics tool and erase any diagnostic trouble code.
  10. Replace the spare wheel and fasten it.
  11. Fit Luggage compartment side trim, CV. See LUGGAGE COMPARTMENT TRIM, CV .
