To remove

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Open the soft top fully and leave the soft top cover open.

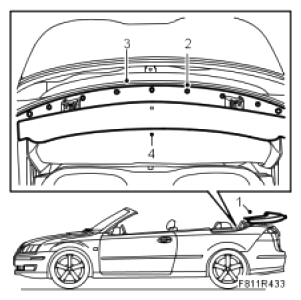

Fig 1: Illustration For Step 2-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the cover plate clip.
Carefully remove the cover plate.
Remove the cover by pulling it backwards.
Undo the first bow plastic plugs.

Fig 2: Illustration For Step 5-6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Detach the headlining from the first bow hooks.
Operate the soft top half way down and secure it with the soft top support.

Fig 3: Identifying Soft Top Support
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Use 84 71 179 REMOVAL TOOL, CLIPS and remove the second bow plastic clip.

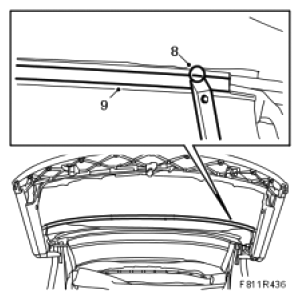

Fig 4: Illustration For Step 8-9
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Pull the headlining plastic holder from the second bow.
Use 82 93 474 REMOVAL TOOL to remove the third bow plastic clip.

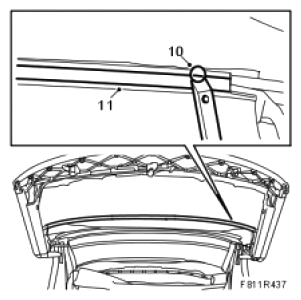

Fig 5: Illustration For Step 10-11
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Pull the headlining plastic holder from the third bow.
Detach the headlining from the rear rails by puling it out of the mounting on both sides.

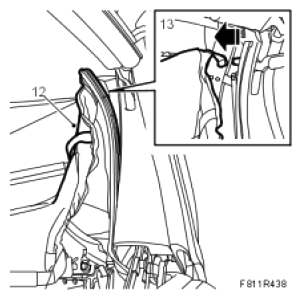

Fig 6: Illustration For Step 12-13
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Pull the headlining rubber straps out of the headlining attaching eyelets.
Use 82 93 474 REMOVAL TOOL to remove the plastic clip from the fourth bow.

Fig 7: Illustration For Step 14-15
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Pull the headlining plastic holder from the fourth bow.
Remove the soft top support and close the soft top.
Raise the sixth bow and support it with the soft top support.

Fig 8: Identifying Soft Top Support
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Undo the headlining plastic clip.

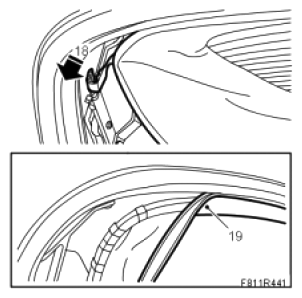

Fig 9: Illustration For Step 18-19
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Pull the headlining edging from the sixth bow groove.
