Dismantling the headlining and rear window

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Manufacture a tool as shown in the illustration.

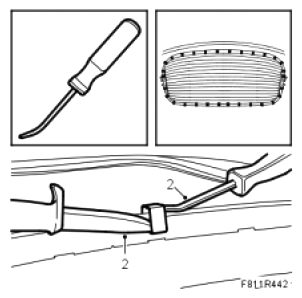

    Fig 1: Lifting Clip With Tool
    G05063571Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Lift up the clip with the tool and place a knife underneath. It is not necessary to remove the clips. Lift them somewhat sideways from the window frame as illustrated. Follow after with the knife to protect the window frame.
  3. Continue in the same manner with the remaining clips.
