Front rail side seal: Removing

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operate the soft top half way down and secure it with 82 93 847 SOFT TOP SUPPORT .

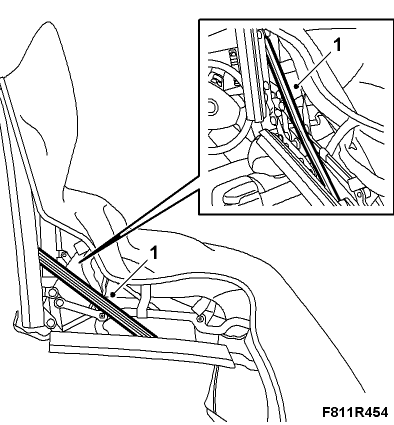

    Fig 1: Identifying Soft Top Support (82 93 847)
    G05566567Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the screw from the seal attaching lug.

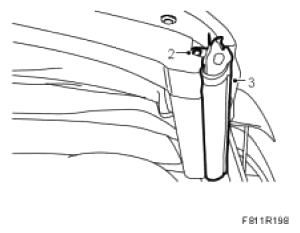

    Fig 2: Illustration For Step 2-3
    G05063457Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the seal. Start by loosening it at the bottom.
