Fourth bow: Removing

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the Headlining until the headlining plastic holder can be removed from the fourth bow.

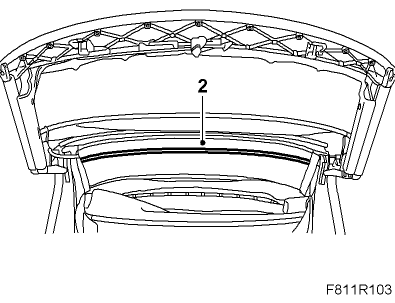

Detach the outer roof from the fourth bow.

Fig 1: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

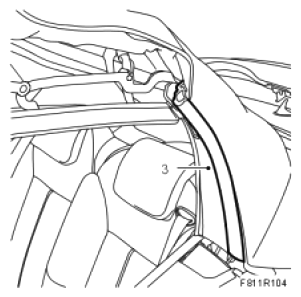

Remove the seal by pulling it out of the middle part of the U-shaped rail. Unhook the upper part of the seal from the fastener. Let the seal hang.

Fig 2: Identifying Rear Rail Seals
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unhook the outer roof attaching profiles from the rear rails.

Fig 3: Identifying Outer Roof
Courtesy of SAAB-SCANIA OF AMERICA, INC.

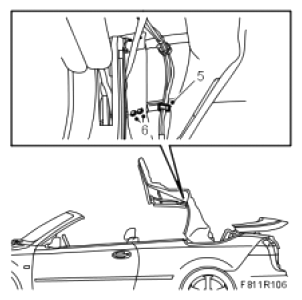

Remove the hydraulic line mounting from the right-hand side of the fourth bow.

Fig 4: Illustration For Step 5-6
Courtesy of SAAB-SCANIA OF AMERICA, INC.

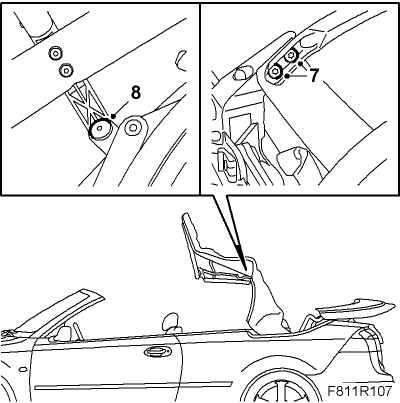

Drill out the blind rivets for the fourth bow guide strap.
Remove the reinforcing bow bolts on one side.
Remove the retaining clips and the fourth bow.

Fig 5: Illustration For Step 7-8
Courtesy of SAAB-SCANIA OF AMERICA, INC.
