Fourth bow: Fitting

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Place the fourth bow in mounting position. Fit the retaining clips.

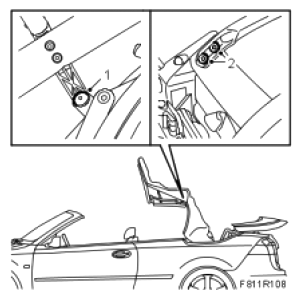

Fig 1: Illustration For Step 1-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Put the reinforcing bow and the bow's guide straps in mounting position. Fit the bolts.
Fit the blind rivets to the fourth bow guide strap.

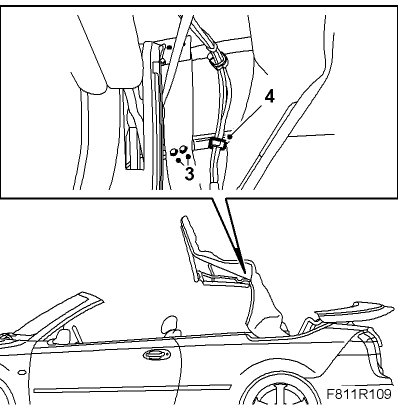

Fig 2: Illustration For Step 3-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the mounting to the hydraulic lines on the right-hand side of the fourth bow.
Hook the outer roof attaching profiles to the rear rails.

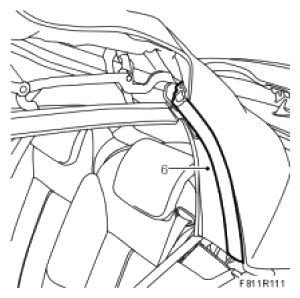

Fig 3: Identifying Outer Roof
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the rear rail seals. Hook the top part of the seal to the mounting and then press it into the rail

Fig 4: Identifying Rear Rail Seals
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the soft top support and raise the soft top fully.
Affix new double-sided adhesive tape to the fourth bow. Fold the fabric tabs of the outer roof around the fourth bow. Observe the center markings on the parts.

Fig 5: Identifying Fabric Tabs Of Outer Roof Around Fourth Bow
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Operate the soft top half way down and secure it with the soft top support to prevent it falling down when the hydraulic pressure drops.

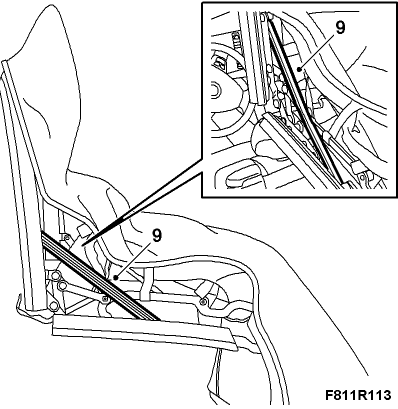

Fig 6: Identifying Soft Top Support
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the Headlining .
