First bow lock hooks: Removing

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the soft top and leave the soft top cover up.

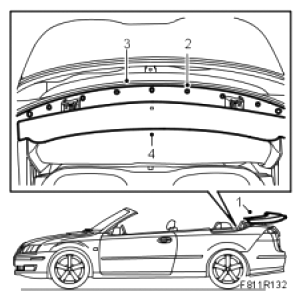

    Fig 1: Illustration For Step 1-4
    G05063641Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the clips for the cover plate.
  3. Remove the cover plate.
  4. Remove the cover by pulling it backwards.
  5. Pull apart the ball joint.

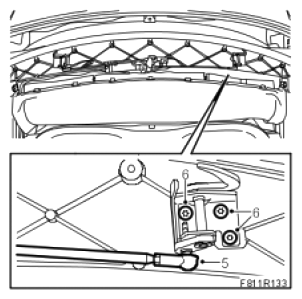

    Fig 2: Illustration For Step 5-6
    G05063642Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the lock hook bolts. Lift away the lock hook.
