First bow lock hooks: Fitting

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the headlining slightly to be able to grip the lock hook nuts. First put the bow's lock hook in mounting position. Fit the bolts.

    Fold back the headlining.

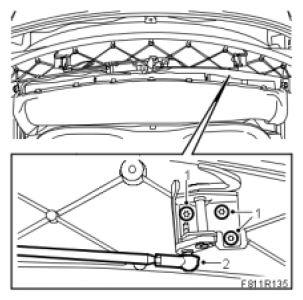

    Fig 1: Illustration For Step 1-2
    G05063643Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Press together the ball joint.
  3. Adjust the position of the lock hooks as described in Inspection and adjustment of first bow lock hooks.
  4. Close the soft top manually.
  5. Lock the first bow manually using the emergency operation tool.
    NOTE: Make sure the sixth bow is not taut before locking the first bow.

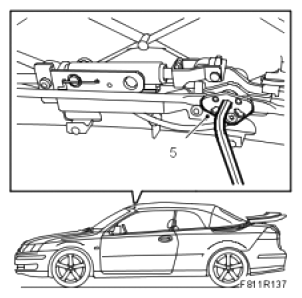

    Fig 2: Locking First Bow Manually With Emergency Operation Tool
    G05063644Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Test the operation of the soft top.
  7. Fit the cover.
    Fig 3: Illustration For Step 7-9
    G05063645Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Fit the cover plate.
  9. Fit the cover plate clip.
  10. Close the soft top.
  11. Connect the diagnostics tool and erase any diagnostic trouble code.
