Fifth bow: Removing

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the Headlining until the headlining plastic holder can be removed from the fourth bow.

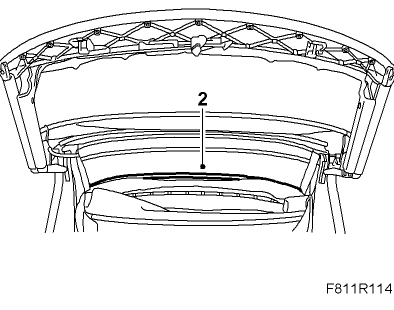

Remove the outer roof from the fifth bow.

Fig 1: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

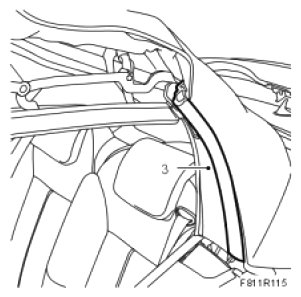

Remove the seal by pulling it out of the middle part of the U-shaped rail. Unhook the upper part of the seal from the fastener. Let the seal hang.

Fig 2: Identifying U-Shaped Rail
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unhook the outer roof attaching profiles from the rear rails.

Fig 3: Identifying Outer Roof
Courtesy of SAAB-SCANIA OF AMERICA, INC.

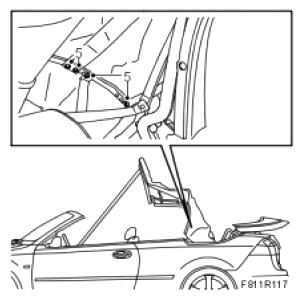

Drill out the blind rivets for the fifth bow guide strap and cable.

Fig 4: Identifying Blind Rivets
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the lock clip and fastening pin for the fifth bow.

Fig 5: Identifying Lock Clip
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the fifth bow.
