Fifth bow: Fitting

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Fit the fifth bow fastening pin and lock clip.

Fig 1: Identifying Lock Clip
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the fifth bow guide strap and cable with blind rivets.

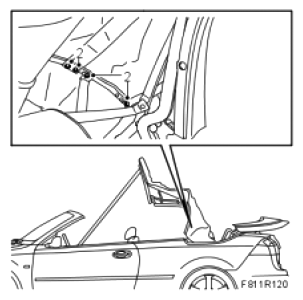

Fig 2: Identifying Guide Strap And Cable With Blind Rivets
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Hook the outer roof attaching profiles to the rear rails.

Fig 3: Identifying Outer Roof Attaching Profiles To Rear Rails
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the rear rail seals. Hook the top part of the seal to the mounting and then press it into the rail.

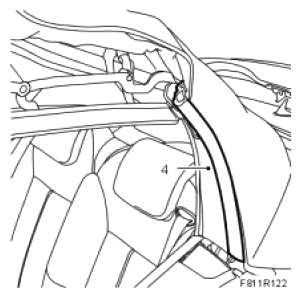

Fig 4: Identifying Rear Rail Seals
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the soft top support and raise the soft top fully.
Affix new double-sided adhesive tape to the fifth bow. Fold the fabric tabs of the outer roof around the fifth bow. Observe the center markings on the parts.

Fig 5: Identifying Fabric Tabs Of Outer Roof Around Fifth Bow
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Operate the soft top half way down and secure it with the soft top support to prevent it falling down when the hydraulic pressure drops.
Fit the Headlining .
