Resetting after emergency opening of soft top cover

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reset the emergency opening.

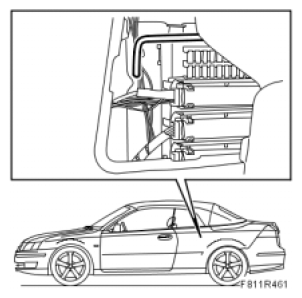

    Fig 1: Pressing Forward Left And Right Emergency Operation Clasps
    G05063647Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the luggage compartment cover at the rear lamps on the left and right-hand side of the luggage compartment.
  3. Replace the tools in the tool kit.
