To fit

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .

Connect the control module connector.

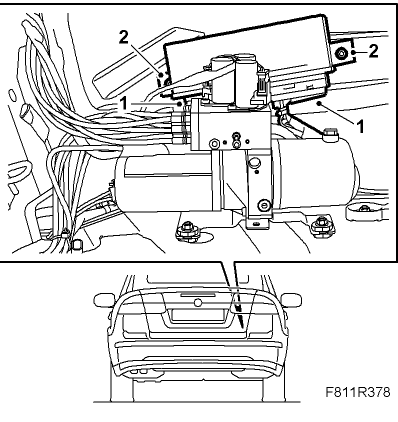

Fig 1: Illustration For Step 1-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the control module.
Connect the diagnostics tool and erase any diagnostic trouble code.
Test the operation of the soft top.
Fit Luggage compartment side trim. See LUGGAGE COMPARTMENT TRIM, CV .

Carry out measures after replacing the control module .
