Filling oil

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. The fluid capacity of the entire system is 0.5 l. The volume between MAX and MIN is 65 ml. Use 89 96 860 Power steering fluid.
    IMPORTANT: Never use the same fluid as in the Saab 900 Cabriolet-M94
  2. Raise the soft top fully.
  3. Remove Luggage compartment side trim, CV on the right hand side. See LUGGAGE COMPARTMENT TRIM, CV .
  4. Remove the fluid filler plug from the reservoir.

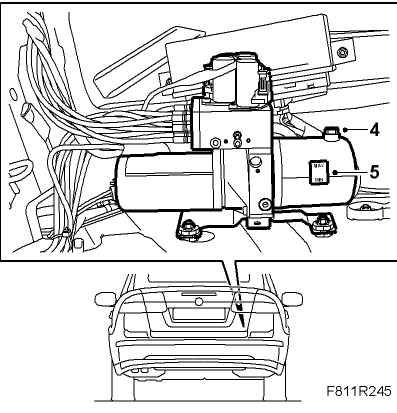

    Fig 1: Illustration For Step 4-5
    G05063451Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fill with fluid to the MAX mark on the reservoir using a suitable funnel.
  6. Fit the fluid filler plug to the reservoir.
  7. Fit Luggage compartment side trim, CV. See LUGGAGE COMPARTMENT TRIM, CV .
