Checking oil level

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

The fluid capacity in the entire system is 0.6 l. The volume between MAX and MIN is 65 ml. Use 89 96 860 Power steering fluid.
IMPORTANT: Never use the same fluid as in the Saab 900 Cabriolet-M94
Raise the soft top fully.
Remove Luggage compartment side trim, CV on the right hand side. See LUGGAGE COMPARTMENT TRIM, CV .
Check the fluid level in the reservoir.
The oil level must be between the MAX and MIN marks.

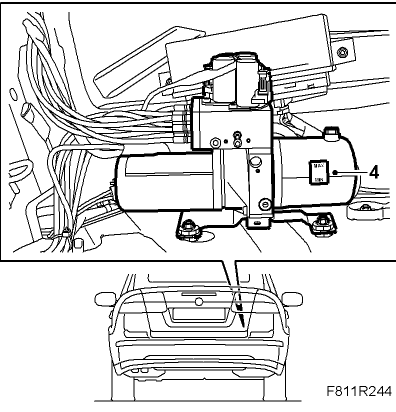

Fig 1: Identifying Fluid Level Marks MAX And MIN In Reservoir
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit Luggage compartment side trim, CV. See LUGGAGE COMPARTMENT TRIM, CV .
